• Onboard 3rd Generation Intel® Core™ i7-3517UE/i7-3555LE
• Soldered up to 8GB DDR3 memory (1600 MT/s)
• 2 x PCI-Express[x8] / 1 x PCI-Express[x8] +2 x PCI-Express[x4]
• 2 x 1000Base-T(up to 4) & 2 x 1000Base-BX
• 6 x Serial ports
• 2 x SATA, 1 x SATA NAND Drive
• 4 x USB2.0, CRT
• 1 x XMC site(Optional)
• PBIT
• IBIT, CBIT and Linux SDKs
Specification:

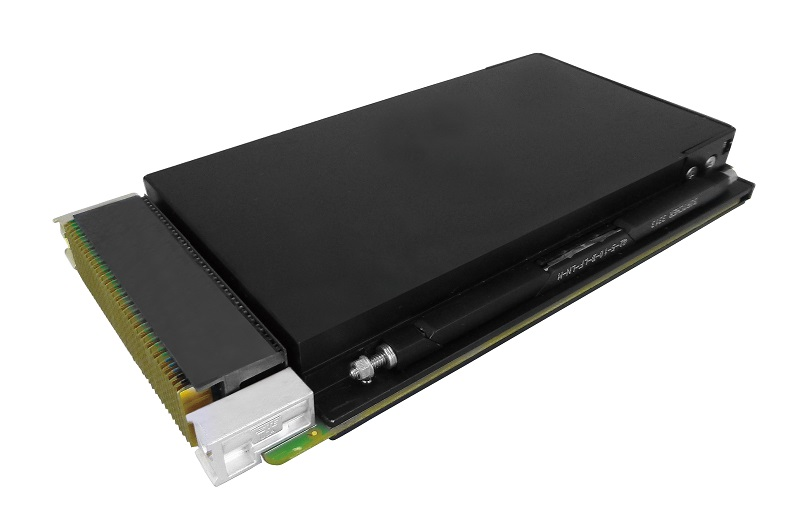

Form Factor | VPX 3U | |
Processor | CPU | Onboard 3rd Generation Intel® Core™ i7-3517UE/ i7-3555LE |
Max. Speed | up to 2.5GHz | |
TDP | up to 25W | |
Chipset | 3nd Generation Intel® QM77 | |
Memory | Technology | soldered memory, DDR3 4GB 1600MT/s |
Max. Capacity | 8GB | |
ECC | Yes | |
Display | Controller | Intel® HD Graphics 4000 |
Display Interface | VGA | |
Resolution | Supports up to 2048 X 1536 | |
Ethernet | 1000Base-TX | 2(Up to 4) |
1000Base-BX | Optional | |
Storage | Storage | 1 soldered SATA SSD 4GB (up to 64GB) |
SATA | 2 | |
Digital I/O | GPIOs | 3 |
Watchdog Timer | Output | System Reset |
Interval | Programmable 1 - 255 second/ Minute | |
Expansion Slot | 1 XMC site(optional), 1 VPX connector(P0,P1,P2) | |
Front I/O | Ethernet (RJ45) | 1 |
USB | 2 | |
CRT | 1 | |
Reset Button | 1 | |
LEDs | POWER LEDs, GPIO LEDs | |
VPX Interface signals | VGA | 1 |
PCI-E x 8 | 1 | |
USB | 2 | |
1000Base-BX | 2 (Optional) | |
SATA | 2 | |
SERIAL Ports | 6 | |
1000 Base-TX | 2 | |
GPIO | 3 bit | |
BIOS | UEFI BIOS | |
Power Requirement | Single 12V/5/3.3V/12VAUX/3.3VAUX | |
Ruggedization | Operating Tempeature | -40° to +85°C |
Shock | 40g, 11ms for 3axes | |
Vibration | 0.2g²/Hz @ 5-2000Hz vibration | |
Humidity | 0 ~ 80% | |
PCB Finished | IPC 6012 Class-3 and conformal coating |
